Besiktas Shipyard is serving with 3 docks for ship repair activities.

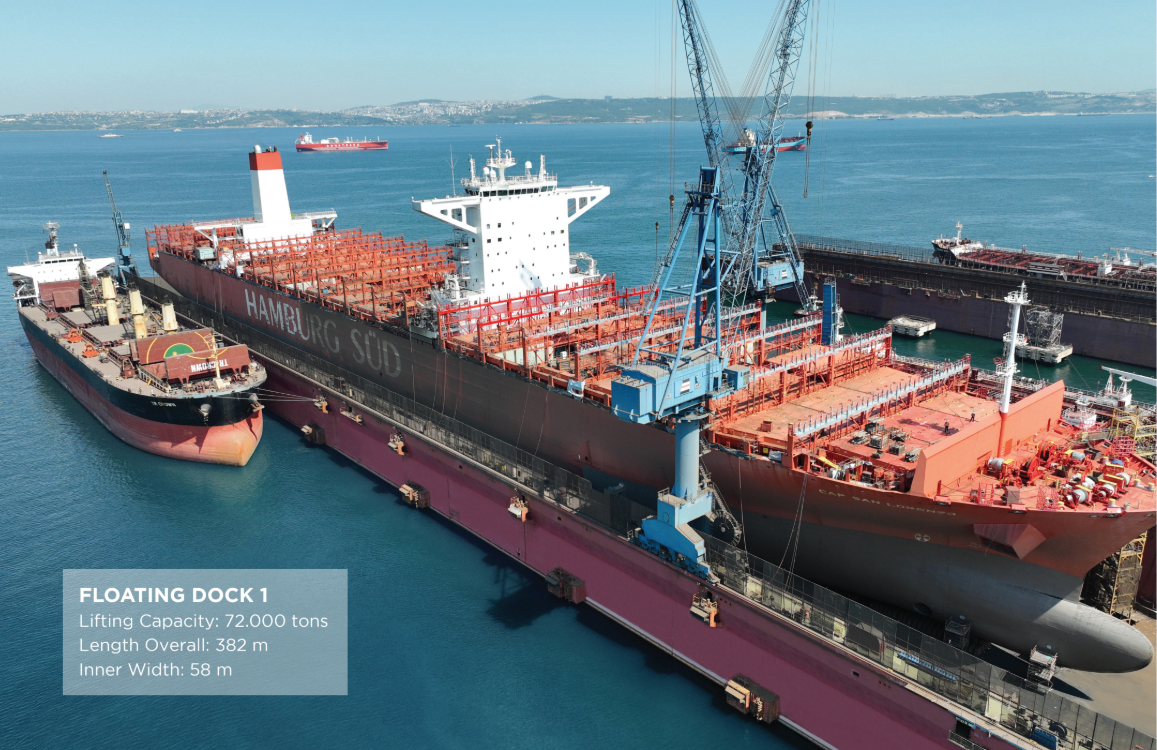

Floating Dock 1
Floating Dock 1 has 382 m length by 58 m clear width and 72.000 tonnes lifting capacity. Keel block height is 1,9 m and vessels can be accommodated with maximum 8,0 m. draft and 0,5 m. trim condition.The floating dock is supported by 2 x 45 t cranes. Yard can provide 440 V / 60 Hz inside dock together with necessary service lines to the vessels.
Floating Dock 2
Floating Dock 2 has 227 m length by 37 m clear width and 18.000 tonnes lifting capacity. Keel black height is 1,5 m and vessels are allowed to max 6,5 m draft / LBP / 100 trim condition. The floating dock is supported by 2 x 20 t cranes. Yard can provide 440 V / 60 Hz inside dock together with necessary service lines to the vessels.
Graving Dock
Graving Dock has 235 m length by 39 m clear width and 28.000 tonnes lifting capacity. Keel block height is 1,65 m and vessels are allowed to max 6,2 m draft / 0,5 m trim condition. The Graving dock is supported with 2x 100. Gantry Crane, 10t Tower Crane and 1 x 35t & 2x16t jib cranes. Yard can provide 440 V / 60 Hz inside dock together with necessary service lines to the vessels.
|
Dock Dimensions |
|||
|
Dimension |
Graving Dock |
Floating Dock No.1 |
Floating Dock No.2 |
|
Loa |
235 m. |
382 m. |
227 m. |
|
Inner Width between walls |
40 m. |
58 m. |
37 m. |
|
Max. Draft |
6,5 m. |
8,25 m. |
7,5 m. |
|
Keel Block Height |
1,75 m. |
1,75 m. |
1,50 m. |
